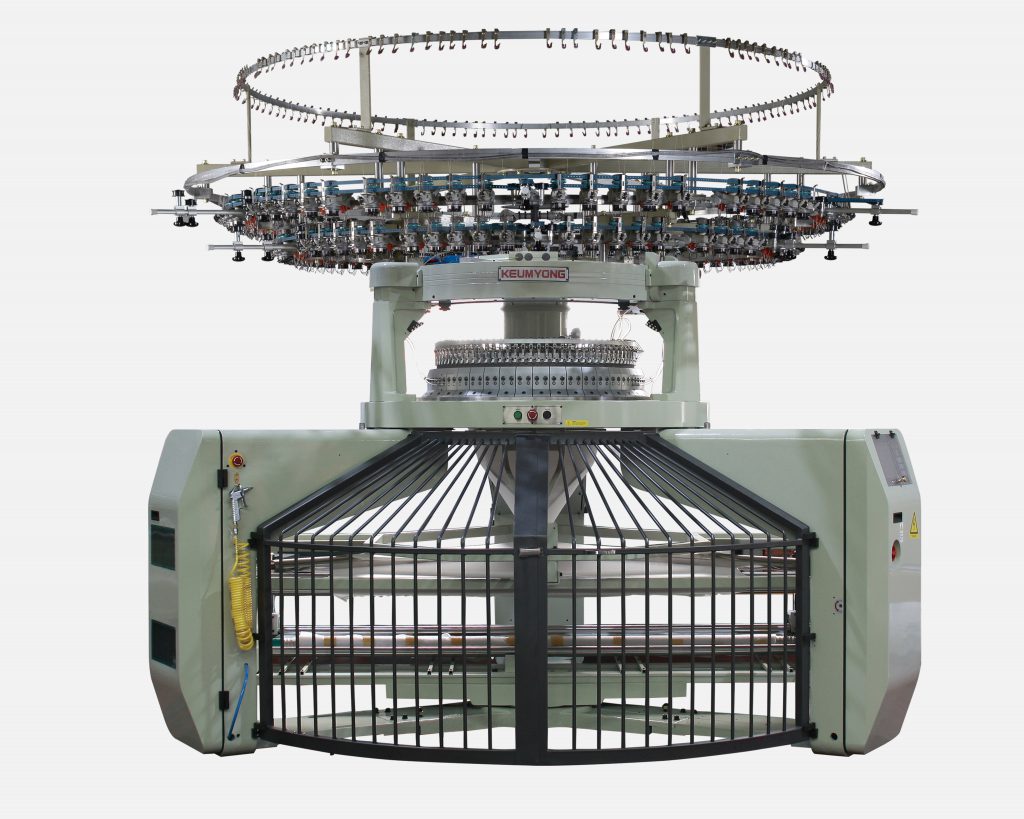

Double Knit Interlock Knitting Machine
Double Knit Interlock Knitting Machine
Machine Application
KILM-72AV/84AV/108V | KILM-72AV, 84AV, 108 | KRB-2TIV | KRB-4TV | KDMJ-72V | KYPL-V
High speed multi-purpose double knit machine with a wide range of stitch and top quality finish. All of these furnish high production and easy pattern changing.
DIAMETER .GAIGE049.0 FEEDS sFEEDIRP.L9 • 30′ 18-32 72F 30-35 34′ 18-32 72F/82F 27-30
* KILM-72V 2 track cylinder, 2 track dial cams. * KILM-72AV : 4 track cylinder, 2 track dial cams.
FABRIC POTENTIONAL
KILM -72V : Interlock, Double single pique, Mock Rodier, Milano Rib, Ponte de Roma, Reversible plaiting KILM-72AV : Single pique, Interlock, EightIca, Swiss pique, French pique, Milano Rib, Ponte di roma. Lacoste, and Flat back db.
Fully integrated driving control mode with character and graphic.
*Self -diagnosis and alarm function.
*Auto take-down tension and speed control system. Easy setting method and bar-graphic digital indicating for all functions.
Technical Specifications
| DIAMETER | GAUGE (N.P.I) | FEEDS | SPEED (R.P.M) |
|---|---|---|---|
|
30" |
18- 32 |
72F |
30- 35 |
|
34" |
18- 32 |
72F/82F |
27- 30 |
